Hydraulic Machine Vise-inside
Keywords:
Classification:
Related Products
Product Description
The new patented hydraulic cylinder, with the clamping force is more stable and canresist vibration machines, the function of easy relieve and maintenance. lt's economical and durable.
Holder of a large opening function and can quickly move back and forth.
Vise body material is high ductility of cast iron, vise both sides of the slide hardened heat (HRC42 °),ensure high precision and high wear resistance, high tensile strength.

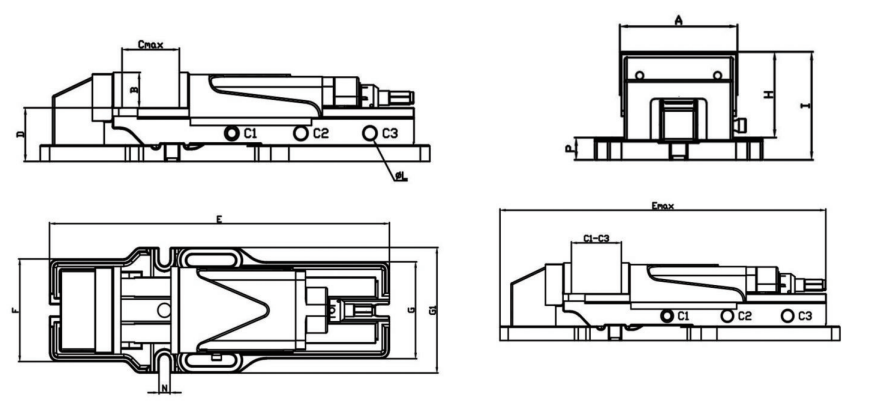

MODEL | A | B | Cmax | C1 | C2 | C3 | D | E | Emax | F | G | G1 | H | I | L | N | P | (kgf) | (kg) | carton |
VH-4-180 | 110 | 40 | 180 | 0-62 | 58-120 | 116-180 | 60 | 430 | 596 | 135 | 122 | 166 | 76 | 100 | 12 | 18 | 24 | 4000 | 25 | 490×210x130 |
VH-5-240 | 134 | 50 | 240 | 0-82 | 78-160 | 158-240 | 75 | 540 | 716 | 160 | 150 | 190 | 101 | 125 | 18 | 20 | 24 | 4500 | 38 | 610x230x150 |
VH-6-320 | 154 | 54 | 320 | 0-112 | 107-222 | 217-320 | 82 | 620 | 824 | 180 | 170 | 220 | 113 | 136 | 20 | 20 | 28 | 4500 | 46 | 690×260x160 |
VH-8-320 | 198 | 65 | 320 | 0-112 | 107-222 | 217-320 | 88 | 640 | 846 | 225 | 215 | 285 | 125 | 153 | 22 | 20 | 28 | 6500 | 68 | 710x330x180 |
Dezhou Jiarui Precision Machinery Co., Ltd.
The company's main products include face mill, end mill, U-drills, tool holders, precision vise and other machine tool accessories. We have a complete quality control system, strictly control quality, and deliver the highest quality products to customers. At the same time, the price is favorable, and we adopt the latest processing technology while reducing production costs and increasing efficiency. The company is located in Dezhou, Shandong Province, which is known as "the hometown of machine tool accessories". Relying on the favorable environment, convenient transportation, strong technology and talent strength, it has won the deep trust of customers and won unanimous praise from domestic and foreign customers. At present, our company's products are exported to the United States, Russia, South Korea, India, Canada, etc. Customer feedback is very good, the quality is excellent, and the price is the best.
- 产品描述
-
- Commodity name: Hydraulic Machine Vise-inside
The new patented hydraulic cylinder, with the clamping force is more stable and canresist vibration machines, the function of easy relieve and maintenance. lt's economical and durable. Holder of a large opening function and can quickly move back and forth. Vise body material is high ductility of cast iron, vise both sides of the slide hardened heat (HRC42 °),ensure high precision and high wear resistance, high tensile strength.
The new patented hydraulic cylinder, with the clamping force is more stable and canresist vibration machines, the function of easy relieve and maintenance. lt's economical and durable.
Holder of a large opening function and can quickly move back and forth.
Vise body material is high ductility of cast iron, vise both sides of the slide hardened heat (HRC42 °),ensure high precision and high wear resistance, high tensile strength.
MODEL
A
B
Cmax
C1
C2
C3
D
E
Emax
F
G
G1
H
I
L
N
P
(kgf)
(kg)
carton
VH-4-180
110
40
180
0-62
58-120
116-180
60
430
596
135
122
166
76
100
12
18
24
4000
25
490×210x130
VH-5-240
134
50
240
0-82
78-160
158-240
75
540
716
160
150
190
101
125
18
20
24
4500
38
610x230x150
VH-6-320
154
54
320
0-112
107-222
217-320
82
620
824
180
170
220
113
136
20
20
28
4500
46
690×260x160
VH-8-320
198
65
320
0-112
107-222
217-320
88
640
846
225
215
285
125
153
22
20
28
6500
68
710x330x180
