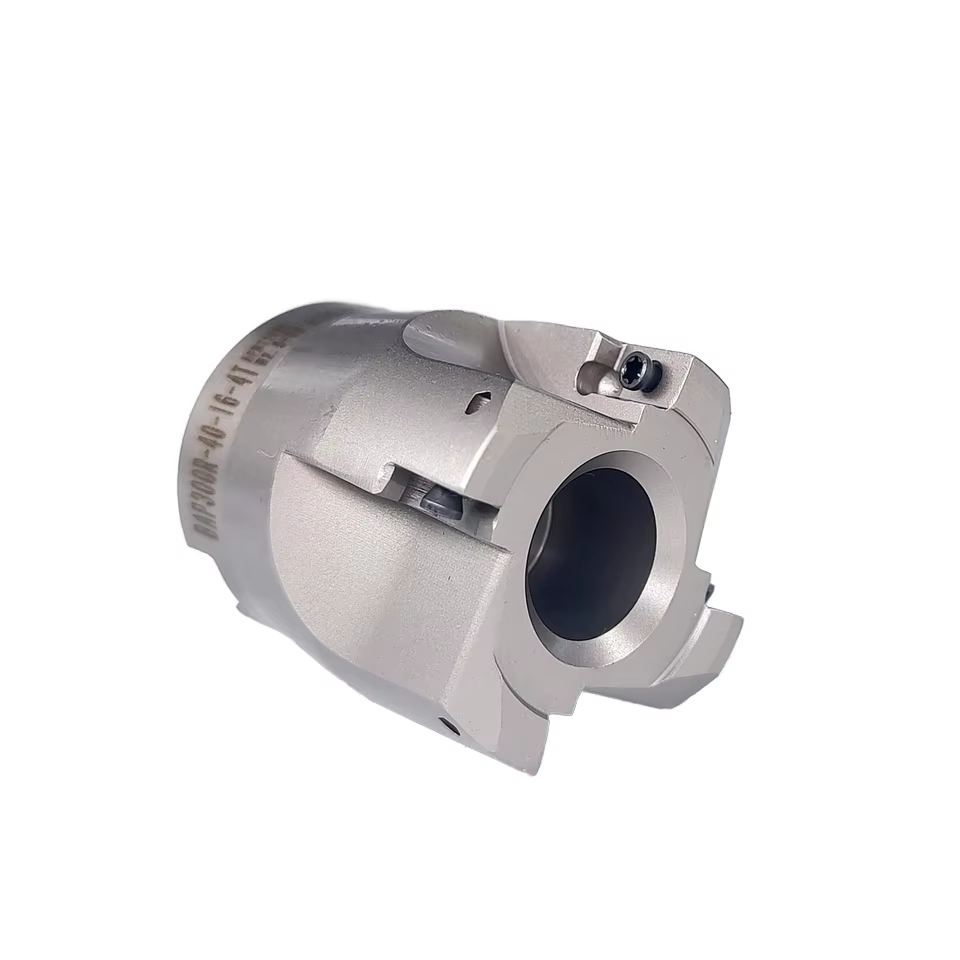

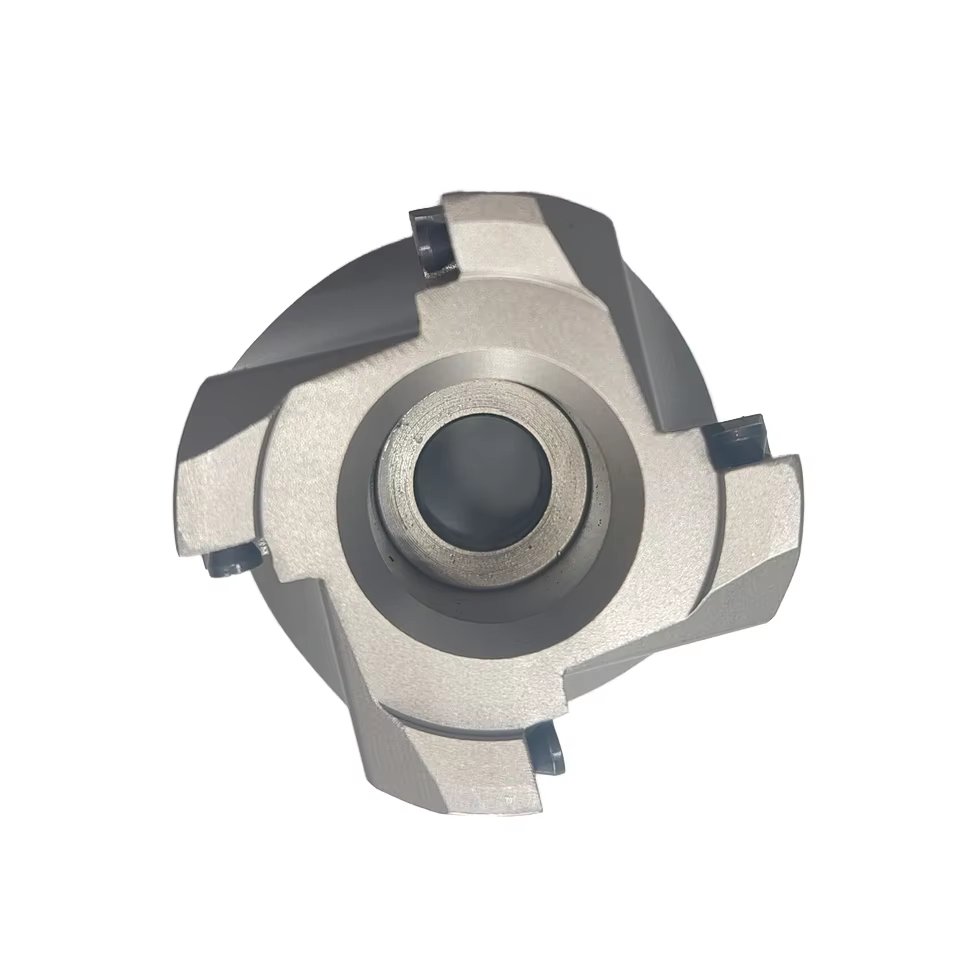

BAP Face Mill BAP300R-40-16-4T APMT1135 Blade Material:42crmo Clamp Screw:M2.5*6 Wrench:T8 Tool for Milling
Keywords:
Classification:
Related Products
Product Description
Product Appllcatlon
1.11°positive angle blade
2.Adaptive multi-material blade, applicable to aluminum steel milling
3.Screw locking, allow a large space debris, a good chip disposal
4.Cutting light, the resistance of all

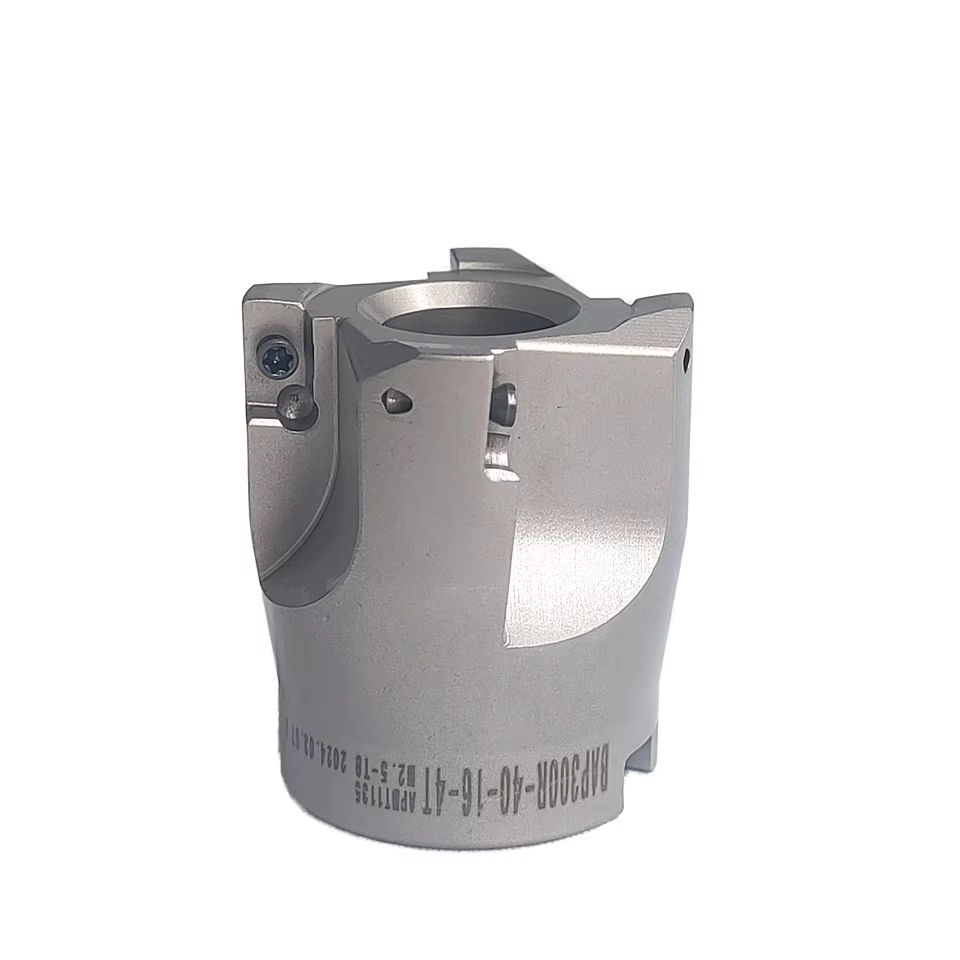

Model | BAP300R-40-16-4T |
Material | 42CrMo |
Outside diameter | 40MM |
nner diameter size | 16MM |

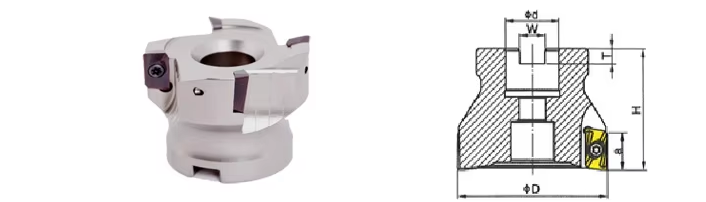

| SIZE(IN) | SIZE(IN) | ||||
D | d | H | W | T | a | |
BAP300R-40-16-5T | 1.575 | 0.630 | 1.570 | 0.331 | 0.220 | 0.354 |
BAP300R--50-22-6T | 1.969 | 0.866 | 1.969 | 0.409 | 0.248 | 0.354 |
BAP400R-50-22-4T | 1.969 | 0.866 | 1.969 | 0.409 | 0.248 | 0.551 |
BAP400R-63-22-4T | 2.480 | 0.866 | 1.969 | 0.409 | 0.248 | 0.551 |
BAP400R-80-27-6T | 3.150 | 1.063 | 1.969 | 0.488 | 0.276 | 0.551 |
BAP400R-100-32-6T | 3.937 | 1.260 | 1.969 | 0.567 | 0.315 | 0.551 |
BAP400R-125-40-7T | 4.921 | 1.575 | 2.480 | 0.646 | 0.354 | 0.551 |
BAP400R-160-40-8T | 6.299 | 1.575 | 2.480 | 0.646 | 0.354 | 0.551 |
BAP400R-200-60-9T | 7.874 | 2.362 | 2.480 | 1.012 | 0.551 | 0.551 |
BAP400R-250-60-14T | 9.843 | 2.362 | 2.480 | 1.012 | 0.551 | 0.551 |
BAP400R-63-25.4-4T | 2.480 | 1.000 | 1.969 | 0.394 | 0.236 | 0.551 |
BAP400R-80-25.4-6T | 3.150 | 1.000 | 1.969 | 0.394 | 0.236 | 0.551 |
BAP400R-100-31.75-6T | 3.937 | 1.250 | 1.969 | 0.512 | 0.315 | 0.551 |
BAP400R-125-38.1-8T | 4.921 | 1.500 | 2.480 | 0.638 | 0.394 | 0.551 |
BAP400R-160-50.8-9T | 6.299 | 2.000 | 2.480 | 0.760 | 0.433 | 0.551 |
| Mating | |||
Cat.No | Insert | Clamp Screw | Wrench |
BAP300R | APMT 1135 PDER | M2.5×6 | T8 |
BAP400R | APMT 1604 PDER | M4×10 | T15 |
Dezhou Jiarui Precision Machinery Co., Ltd.
The company's main products include face mill, end mill, U-drills, tool holders, precision vise and other machine tool accessories. We have a complete quality control system, strictly control quality, and deliver the highest quality products to customers. At the same time, the price is favorable, and we adopt the latest processing technology while reducing production costs and increasing efficiency. The company is located in Dezhou, Shandong Province, which is known as "the hometown of machine tool accessories". Relying on the favorable environment, convenient transportation, strong technology and talent strength, it has won the deep trust of customers and won unanimous praise from domestic and foreign customers. At present, our company's products are exported to the United States, Russia, South Korea, India, Canada, etc. Customer feedback is very good, the quality is excellent, and the price is the best.
